Diesel Engine Lubrication Systems Explained: Oil Flow & Pressure

A diesel engine contains many moving surfaces operating under high load, speed, and heat. Without a suitable oil film, these surfaces can experience excessive friction, increased wear, and excessive heat.

How does oil travel from the sump to the bearings, turbocharger, valvetrain, and piston-cooling system? Understanding Diesel Engine Lubrication Systems is a foundational requirement for any developing heavy-equipment technician.

This guide explains how engine oil flows, how it protects moving components, and why lubrication faults should be approached as complete system problems rather than isolated component failures.

Table of Contents

What Does Engine Oil Actually Do?

Engine oil performs several important functions inside a diesel engine.

While oil does not perform every function equally in every engine, its main roles generally include:

Reducing friction: Creating a fluid film that allows metal surfaces to slide or rotate with less resistance.
Reducing wear: Helping prevent direct metal-to-metal contact between moving components.
Cooling components: Carrying heat away from areas such as piston undersides, bearings, and turbocharger components.
Managing contamination: Helping suspend and transport contaminants so they can be removed by filtration or retained in the oil until service.
Protecting against corrosion: Using additives that help protect internal surfaces and manage acids or moisture.
Supporting sealing: Assisting piston rings and cylinder surfaces in controlling combustion gases and oil movement.
Supporting hydraulic functions: Providing hydraulic energy in certain engine systems, such as some HEUI fuel systems or engine-braking arrangements.

A healthy lubrication system therefore does much more than simply make moving parts slippery.

Tribology Explained Simply

To understand how Diesel Engine Lubrication Systems protect engine components, technicians need a basic understanding of tribology.

Tribology is the study of friction, wear, and lubrication between surfaces in relative motion.

Metal surfaces that appear smooth to the eye contain microscopic peaks and valleys known as asperities.

When two surfaces contact each other under load, these irregularities can interact and create:

friction
heat
wear
microscopic debris

A lubricant helps separate the surfaces and reduces direct solid-to-solid contact.

Instead of two metal surfaces rubbing directly against one another, a controlled oil film carries part or all of the load between them.

Three Lubrication Regimes

Engine components may operate under different lubrication conditions depending on speed, load, oil viscosity, temperature, and component geometry.

Boundary Lubrication

Boundary lubrication occurs when the oil film is very thin and some direct surface interaction may occur.

This condition may be relevant during:

engine start-up
very low-speed movement
high-load contact conditions
certain camshaft and valvetrain interactions

Anti-wear additives in the oil can help protect surfaces when a complete fluid film cannot be maintained.

Mixed-Film Lubrication

Mixed-film lubrication exists between boundary and full-film lubrication.

A lubricant film carries part of the load, but some surface interaction may still occur.

This condition can appear as speed, load, viscosity, or temperature changes.

Hydrodynamic Lubrication

Hydrodynamic lubrication occurs when a fluid film substantially separates moving surfaces under suitable operating conditions.

This is particularly important in rotating plain bearings such as:

crankshaft main bearings
connecting-rod bearings
some camshaft bearings

Successful hydrodynamic lubrication depends on several factors working together.

The Hydrodynamic Oil Wedge

The hydrodynamic oil wedge is one of the most important lubrication concepts for an apprentice to understand.

The oil pump supplies oil to the bearing area.

As the crankshaft journal rotates inside the bearing, its movement and the shape of the bearing clearance draw oil into a narrowing gap.

This movement develops a pressure distribution within the oil film.

The resulting fluid film helps support the load carried by the bearing and separates the journal from the bearing surface.

A useful way to visualize this is to imagine a moving surface drawing fluid underneath itself. Under the correct conditions, the fluid develops enough supporting pressure to carry load without requiring continuous direct metal-to-metal contact.

Successful oil-film formation depends on:

adequate oil supply
correct viscosity
rotational speed
bearing clearance
load
oil temperature
component condition

This is why good lubrication depends on much more than simply having oil in the sump.

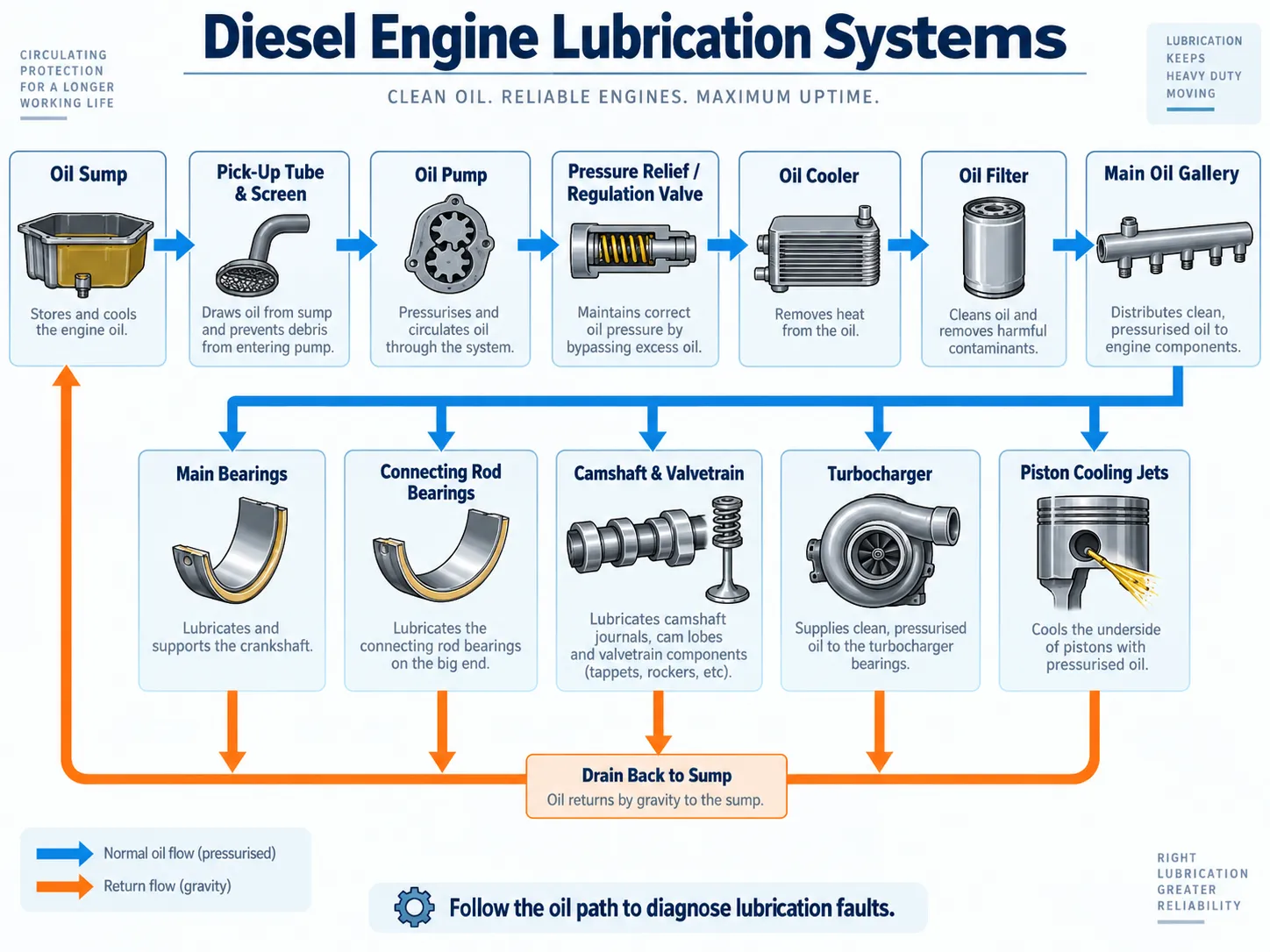

Follow the Oil: Sump to Bearings and Back

When diagnosing Diesel Engine Lubrication Systems, a technician should be able to visualize the complete oil path.

A simplified oil-flow sequence is:

Oil Sump → Pick-Up Tube and Screen → Oil Pump → Pressure Regulation → Oil Cooler → Oil Filter → Main Oil Gallery → Bearings / Camshaft / Valvetrain / Piston Cooling Jets / Turbocharger → Drain Back to Sump

Exact routing and component order vary between engine designs.

However, learning to follow the oil physically through the engine gives technicians a strong foundation for understanding lubrication faults.

Oil Sump and Pick-Up

Oil Sump

The oil sump, or oil pan, stores the engine oil at the bottom of the engine.

Depending on engine design, the sump may also:

collect oil returning from engine components
allow entrained air to separate from the fluid
contribute to heat dissipation
maintain the required operating oil volume

Pick-Up Tube and Screen

The pick-up tube draws oil from the sump toward the oil pump.

A screen helps prevent large debris from entering and damaging the pump.

Possible problems in this area may include:

low oil level
damaged pick-up tube
loose or leaking pick-up connections
blocked screen
aeration
incorrect oil level

An overfilled sump can also create problems on some engines if rotating components disturb the oil excessively and introduce air into it. The sump and pick-up form the starting point of Diesel Engine Lubrication Systems, supplying the oil that will circulate through the engine.

How the Oil Pump Works

The oil pump creates the flow required to circulate oil through the engine.

Many diesel engines use positive-displacement pump designs.

Possible types include:

gear pumps
gerotor pumps
variable-displacement pumps where fitted
other manufacturer-specific designs

The pump creates flow.

System pressure develops as that flow encounters:

bearing clearances
oil galleries
restrictions
oil viscosity
pressure-regulating components
temperature-related changes
engine operating conditions

This distinction is important.

The oil pump is a critical part of Diesel Engine Lubrication Systems, but oil pressure cannot be understood by looking at the pump alone.

Pressure Regulation and Relief Valves

Because oil-pump output changes with engine speed and operating conditions, lubrication systems require some form of pressure control.

A regulating or relief valve may:

limit excessive pressure
redirect excess flow
protect lubrication-system components
help maintain suitable system operation across different engine speeds

Depending on engine design, excess oil may be redirected toward:

the pump inlet
the sump
another part of the lubrication circuit

Exact arrangements vary by manufacturer. Pressure regulation is therefore an important control function within Diesel Engine Lubrication Systems.

Oil Coolers

Engine oil absorbs heat from operating components.

This heat must be managed so the oil remains within an appropriate operating range.

An oil cooler transfers heat away from the lubricant.

Possible designs include:

oil-to-coolant heat exchangers
oil-to-air coolers
manufacturer-specific arrangements

Some systems also include:

bypass valves
thermostat-controlled circuits
other temperature-management features

The objective is to help maintain suitable oil temperature and viscosity throughout engine operation.

Engine Oil Filtration

Filtration helps protect Diesel Engine Lubrication Systems from abrasive contamination.

Full-Flow Filtration

In many engines, most or all of the oil in the main circulation path passes through a full-flow filter before reaching important lubricated components.

The exact arrangement depends on system design.

Bypass Filtration

Some engines use an additional bypass-filtration circuit.

This circuit processes a smaller portion of the total oil flow through finer filtration before returning it to the lubrication system or sump.

Filter specifications vary significantly.

Technicians should therefore use filters that meet the engine manufacturer’s requirements rather than relying only on physical size or appearance.

Filter Bypass Valves

The engine still requires oil flow if the filter becomes excessively restricted.

A filter bypass valve may allow oil to avoid the normal filtration path when restriction becomes too high.

Possible contributing conditions include:

very cold oil
excessive contamination
restricted filter media
unsuitable oil viscosity
other system conditions

The bypass valve helps protect oil flow.

However, bypass operation can reduce filtration effectiveness because some oil may circulate without passing through the normal filter media.

The bypass valve is therefore a protective device, not a substitute for correct servicing.

Main Oil Galleries

After leaving the pump, cooler, and filtration circuit according to the engine design, oil enters passages known as oil galleries.

These drilled passages distribute oil throughout the engine.

Oil may be routed toward:

main bearings
connecting-rod bearings
camshaft bearings
valvetrain components
piston cooling jets
turbocharger bearings
geartrain components
other lubricated areas

The exact routing varies between engine families. In Diesel Engine Lubrication Systems, the main oil galleries act as the distribution network that carries oil toward critical components.

Main and Connecting-Rod Bearing Lubrication

Main bearings support the crankshaft.

Connecting-rod bearings support the rotating connection between the connecting rods and crankshaft journals.

These are commonly plain bearings that depend heavily on:

controlled clearances
correct oil supply
suitable oil viscosity
hydrodynamic film formation

Their purpose is to support rotating loads while allowing relatively low-friction movement.

Bearing lubrication can be affected by:

insufficient oil supply
unsuitable viscosity
abrasive contamination
excessive clearance
mechanical overload
misalignment
component wear
other mechanical conditions

For this reason, a bearing failure should not automatically be blamed on the bearing itself. Protecting these bearings is one of the most important functions of Diesel Engine Lubrication Systems.

Camshaft and Valvetrain Lubrication

The valvetrain contains several different types of contact.

Components may:

rotate
slide
pivot
roll

Lubricating oil may be directed toward:

camshaft journals
cam lobes and followers
rocker shafts
rocker pivots
valve-related components
timing components

The exact lubrication path depends on engine design.

Good lubrication in this area is especially important because some valvetrain contacts operate under high localized loads.

Piston Cooling Jets

Some diesel engines use piston-cooling jets or oil nozzles.

These direct oil toward areas such as the underside of the piston crown.

Their functions may include:

removing heat from the piston
helping control piston temperature
lubricating piston-related surfaces
supporting thermal management during high-load operation

Not every diesel engine uses the same arrangement.

The condition and operation of piston-cooling components should therefore be evaluated according to the manufacturer’s design.

Turbocharger Lubrication

Many turbochargers rely on engine oil for bearing lubrication and heat management.

The lubrication system must provide:

suitable oil supply
appropriate cleanliness
correct oil condition
an unrestricted return or drain path

Turbocharger lubrication problems may involve:

restricted oil supply
restricted oil drain
contaminated oil
aeration
unsuitable viscosity
excessive crankcase pressure
internal turbocharger damage

A turbocharger oil leak should therefore not automatically result in turbocharger replacement.

The complete supply and drain conditions should be evaluated. The turbocharger therefore depends on healthy Diesel Engine Lubrication Systems for both oil supply and reliable drain-back.

Oil Drain-Back to the Sump

After oil lubricates or cools engine components, it generally drains back toward the sump.

This return path is also important.

Restricted drainage may contribute to:

oil accumulation
turbocharger oil-control problems
aeration
altered crankcase conditions
poor oil return from upper engine areas

When troubleshooting lubrication, technicians should therefore consider both the oil supply path and the return path.

Oil Flow vs Oil Pressure

This is one of the most important concepts in Diesel Engine Lubrication Systems:

Oil flow and oil pressure are related, but they are not the same thing.

Oil Flow

Flow is the movement of oil through the lubrication system.

Oil Pressure

Pressure develops as the moving oil encounters resistance and clearances within the system.

Oil pressure can be affected by:

oil viscosity
temperature
engine speed
pump output
bearing clearances
system restrictions
pressure-regulating components
oil condition
internal leakage

A pressure reading does not directly tell a technician how much lubrication every component is receiving.

Most importantly:

Low oil pressure is a symptom that requires diagnosis.

Why Oil Viscosity Matters

Viscosity is a fluid’s resistance to flow.

The viscosity of engine oil changes with temperature.

If oil is too viscous for the operating conditions, circulation and component supply may be affected.

If viscosity becomes too low for the operating conditions, the lubricant film may have less ability to support the required load.

Several factors can influence oil viscosity, including:

temperature
fuel dilution
oxidation
contamination
oil degradation
incorrect lubricant selection

Multigrade engine oils are designed to provide suitable viscosity characteristics across a range of temperatures.

Technicians should always use the viscosity grade and performance specification recommended by the manufacturer for the engine and operating conditions.

Oil Contamination

Engine oil changes chemically and physically during service.

Contaminants and additive depletion can progressively reduce its ability to protect the engine.

Dirt and Silica

Abrasive contamination may enter through:

intake-system leaks
poor servicing practices
contaminated storage
damaged seals
contaminated transfer equipment

Abrasive particles can accelerate wear on lubricated surfaces.

Fuel Dilution

Fuel can enter the crankcase for several reasons depending on engine design and operating condition.

Fuel dilution can reduce oil viscosity and affect the lubricant’s ability to maintain a protective film.

Coolant Contamination

Coolant entering the oil can affect lubricant chemistry and may contribute to:

deposits
corrosion
lubricant degradation
bearing damage

The exact effects depend on contamination level and operating conditions.

Water Contamination

Water may enter through:

condensation
external contamination
cooling-system problems
operating conditions

Water can contribute to corrosion, emulsification, additive degradation, and other lubrication problems. Contamination can affect the performance and durability of Diesel Engine Lubrication Systems even when the oil level appears correct.

Oil Analysis at Foundation Level

Oil analysis can provide useful information about the condition of both the lubricant and the engine.

Laboratory testing may evaluate:

viscosity
wear elements
fuel dilution
water
coolant indicators
soot
oxidation
other contamination depending on the test package

Oil-analysis results should be interpreted as trends and patterns.

A single element does not automatically identify one failed component.

Results should be evaluated together with:

engine design
oil type
service hours
previous sample history
maintenance events
operating conditions
other diagnostic evidence

Oil analysis is therefore most useful when it is treated as one part of a broader condition-monitoring process.

Understanding Low Oil Pressure

Low oil pressure can have many possible causes.

These may include:

low oil level
unsuitable viscosity
excessive oil temperature
fuel dilution
oil-pump condition or performance
pressure-regulating faults
excessive internal clearances
internal leakage
filter problems
cooler-related problems
sensor or wiring faults
engine operating conditions

The pressure reading tells the technician that a condition exists.

It does not identify the failed component. Diagnosing low pressure in Diesel Engine Lubrication Systems requires examining the complete oil path rather than assuming one component has failed.

Understanding High Oil Pressure

High oil pressure does not automatically mean better lubrication.

Possible causes may include:

cold oil
excessive viscosity
pressure-regulating problems
system restrictions
unsuitable lubricant
sensor faults
wiring or circuit problems

Both unusually low and unusually high pressure require interpretation within the operating condition of the engine. In Diesel Engine Lubrication Systems, unusually high pressure should be treated as a condition to investigate rather than proof of better lubrication.

Diagnostic Leader Perspective: Low Oil Pressure Is a Symptom

Replacing the oil pump solely because a low-pressure warning is present skips the diagnostic process.

A Diagnostic Leader first verifies the condition and then identifies why the pressure is low.

Ask systematically:

Is the oil level correct?
Is the correct lubricant being used?
Has the pressure indication been independently verified using the OEM-recommended method?
What is the oil temperature?
Is fuel contaminating the oil?
Is coolant or water present?
Is the pump producing the required flow?
Is the pressure-regulating system functioning correctly?
Are internal clearances excessive?
Is there internal leakage?
Is the filter affecting flow?
Is the cooler affecting the system?
Does pressure change with engine speed and temperature as expected?

The central lesson is simple:

Low oil pressure is a measured condition. The root cause still has to be proven.

Connect Lubrication Diagnosis to the Complete Engine

Lubrication problems may originate outside Diesel Engine Lubrication Systems.

For example:

intake-system contamination can introduce abrasive dirt
fuel-system problems can contribute to fuel dilution
cooling-system faults can contaminate or overheat the oil
crankcase-pressure problems can affect turbocharger oil drainage
mechanical wear can alter bearing clearances
electrical faults can create false pressure indications

A technician must therefore view the engine as an interconnected system.

This is systems thinking in practice.

Common Lubrication-System Problems

Possible problem areas include:

low oil level
overfilled sump
incorrect lubricant
contaminated oil
fuel dilution
coolant contamination
restricted pick-up
oil-pump problems
regulating-valve problems
filter restriction
oil-cooler problems
excessive bearing clearance
blocked galleries
aeration
sensor faults
wiring faults
restricted turbocharger drain
piston-cooling jet problems

This is a list of possible fault areas.

It is not a diagnostic flowchart.

Testing is still required to identify the root cause.

Common Apprentice Mistakes

Mistake 1: “Low oil pressure means the oil pump is bad.”

Correction: Low pressure can have many causes involving oil condition, temperature, internal clearances, regulation, leakage, sensors, and pump performance.

Mistake 2: “High oil pressure means excellent lubrication.”

Correction: High pressure may indicate cold oil, excessive viscosity, restrictions, regulating problems, or measurement faults.

Mistake 3: “Oil pressure and oil flow are the same thing.”

Correction: Flow describes oil movement. Pressure reflects resistance and operating conditions within that flow path.

Mistake 4: “Any engine oil of the same viscosity grade is suitable.”

Correction: The lubricant must also meet the manufacturer’s required performance specification and application requirements.

Mistake 5: “One wear metal in an oil sample proves which part failed.”

Correction: Oil-analysis results should be interpreted as trends and patterns alongside mechanical evidence and service history.

Mistake 6: “If the oil level is full, lubrication must be good.”

Correction: Correct quantity does not guarantee correct pressure, flow, cleanliness, viscosity, cooling, or distribution.

Frequently Asked Questions About Diesel Engine Lubrication Systems

What is the purpose of an engine lubrication system?

Diesel Engine Lubrication Systems reduce friction and wear, help manage heat, transport contaminants toward filtration, and supply oil to components that depend on lubrication for normal operation.

What does the oil pump do?

The oil pump draws oil from the sump and provides the flow required to circulate oil through the engine.

System pressure then develops according to clearances, viscosity, restrictions, regulation, speed, and operating conditions.

What is a hydrodynamic oil wedge?

A hydrodynamic oil wedge is a supporting lubricant film created as a rotating journal draws oil into a narrowing bearing clearance.

The resulting pressure distribution helps separate the journal and bearing surfaces while supporting load.

What is the difference between oil pressure and oil flow?

Flow is the movement of oil through the lubrication system.

Pressure develops as that oil encounters resistance within the system.

They are related, but they are not the same measurement.

Why does oil pressure usually change as the engine warms?

As engine oil becomes warmer, its viscosity generally decreases.

The oil can then flow more easily through bearing clearances and galleries, which commonly changes system pressure.

The expected pressure range depends on the engine design and operating condition.

What causes low oil pressure?

Possible causes include:

low oil level
incorrect viscosity
excessive oil temperature
fuel dilution
excessive bearing clearance
regulating-valve problems
internal leakage
pump problems
sensor or circuit faults

Testing is required to determine the actual cause.

Why does engine oil need filtration?

Filtration helps remove abrasive contamination that can accelerate wear of bearings, journals, pumps, valvetrain components, and other lubricated surfaces.

What is fuel dilution?

Fuel dilution occurs when fuel mixes with the engine oil.

This can reduce viscosity and potentially weaken the lubricant film under load.

The cause of fuel dilution depends on engine design, operating conditions, and the specific fault present.

What do piston cooling jets do?

Piston cooling jets direct oil toward the piston to remove heat and help control piston temperature during operation.

Why is oil analysis useful?

Oil analysis can help identify developing trends in:

lubricant condition
contamination
wear elements
fuel dilution
water or coolant indicators

When interpreted together with service history and other evidence, it can support condition-based maintenance decisions.

Final Message: Follow the Oil

When understanding or troubleshooting Diesel Engine Lubrication Systems, follow the physical oil path:

Oil Sump → Pick-Up → Oil Pump → Pressure Regulation → Oil Cooler → Oil Filter → Main Gallery → Bearings / Valvetrain / Piston Cooling / Turbocharger → Drain Back to Sump

Then ask:

Is the correct oil present?
Can the pump receive it?
Can the pump move it?
Is pressure being regulated correctly?
Can oil pass through the cooler and filter?
Is oil reaching the galleries?
Are internal clearances appropriate?
Is contamination changing the lubricant?
Is the pressure reading believable?
Is oil returning correctly to the sump?

Trace the oil path. Verify the condition. Prove the fault.

That is systems thinking.

That is how a technician develops into a Diagnostic Leader rather than a parts changer.

References and Further Reading

For engine-specific oil specifications, pressure limits, filtration requirements, service procedures, and lubrication-system layouts, technicians should consult the appropriate manufacturer technical information.

Useful technical sources include:

OEM Operation and Maintenance Manuals
Caterpillar technical and service information where publicly available
Cummins technical literature
Shell Lubricants technical resources
Mobil / ExxonMobil lubrication technical information
Chevron lubrication technical resources
SAE International engineering resources

Modern Trade Skills Institutional Reference

Modern Trade Skills Handbook Version 1.0

Institutional reference for the Modern Trade Skills Diagnostic Leader philosophy, systems-thinking framework, and apprentice-development principles.
