Heavy Equipment Preventive Maintenance: Technician Mindset

Table of Contents

1. Introduction

Good technicians repair failures. Great technicians prevent them.

In heavy industry, the difference between a profitable operation and a failing one is machine availability. Achieving high availability relies heavily on a single discipline: Heavy Equipment Preventive Maintenance. However, preventive maintenance is not a routine parts-changing exercise. It is a disciplined inspection and condition-assessment process used to identify developing faults before they become expensive breakdowns.

Too often, preventive maintenance (PM) is treated as a race to cross items off a service sheet. Changing oil, replacing filters, and applying grease are baseline requirements, but they are not the entirety of the job. Preventive maintenance is the technician’s greatest opportunity to identify early evidence of a developing failure.

Our mission is developing Diagnostic Leaders, not parts changers. A Diagnostic Leader approaches a PM service with a specific mindset: they are not just there to replace fluids; they are there to interrogate the machine.

2. What Preventive Maintenance Really Means

To understand the value of preventive maintenance, a technician must understand how it fits into the broader reliability strategy of a heavy equipment fleet.

┌────────────────────────────────────────────────────────────────────────────┐ │ MAINTENANCE STRATEGIES EXPLAINED │ ├──────────────────────┬─────────────────────────────────────────────────────┤ │ Strategy │ Definition │ ├──────────────────────┼─────────────────────────────────────────────────────┤ │ Reactive │ Running a machine until it breaks, then fixing it. │ │ Corrective │ Repairing a known defect before it causes a major │ │ │ operational failure. │ │ Preventive (PM) │ Time or hour-based servicing and inspection to │ │ │ maintain machine health and identify early wear. │ │ Condition-Based │ Maintenance triggered by specific evidence, such as │ │ │ oil analysis results or component wear limits. │ │ Predictive │ Predictive maintenance uses trends, sensors and │ │ │ analytical models to estimate developing failure │ │ │ risk and the likely remaining useful life of a │ │ │ component. │ │ Reliability-Centred │ A comprehensive engineering strategy that selects │ │ │ the best maintenance method for each specific asset.│ └──────────────────────┴─────────────────────────────────────────────────────┘

In the context of heavy mining and construction equipment, PM is the foundation that makes Condition-Based and Predictive maintenance possible.

3. Servicing Versus Inspecting

There is a profound difference between servicing a machine and inspecting it.

Servicing involves physical maintenance actions:

Changing oil
Replacing filters
Greasing joints
Topping up fluids
Adjusting components

Inspecting involves active condition monitoring:

Checking component condition
Comparing physical measurements against OEM specifications
Looking for developing wear
Identifying minor leaks
Inspecting wiring harnesses and electrical connectors
Monitoring abnormal temperatures
Examining used filters and magnetic drain plugs for debris
Recording abnormalities accurately

A completed service is not proof of a healthy machine.

A technician can complete every scheduled service task, tick every box on a service sheet, and still fail to perform meaningful preventive maintenance if they do not inspect the machine critically.

4. Why Technician Mindset Matters

The quality of a PM service depends almost entirely on the behaviour and mindset of the technician performing it. The best checklist in the world cannot compensate for a lack of curiosity or attention to detail.

A Diagnostic Leader approaches a PM with:

Ownership: Treating the multi-million-dollar asset as if they personally own it.
Curiosity: Asking why a bracket is vibrating, rather than just ignoring it.
Patience: Taking the time to wipe down a fitting before opening a hydraulic system.
Attention to detail: Noticing a slightly rubbed harness before it shorts out an ECM.
Honesty in reporting: Refusing to “pencil-whip” (falsely sign off) checklists.
Respect for machine-protection systems: Never bridging out an alarm just to keep the machine running.
Willingness to investigate abnormalities: Following up on minor defects immediately.
Responsibility: Following defects through to closure to protect the next shift.

5. The Preventive Maintenance Technician Mindset

To excel at preventive maintenance, technicians must cultivate these eight core behaviours:

Take ownership of the machine: When that machine leaves your bay, your professional reputation goes with it.
Inspect beyond the checklist: A PM sheet is a minimum standard, not a boundary. Look at the structures, the routing of new hoses, and areas not explicitly listed.
Look for change, not only obvious damage: A minor weeping seal today is a blown cylinder tomorrow. Spot the transition.
Respect contamination control: Introducing dirt into a hydraulic system during a filter change creates the exact failure the PM is supposed to prevent.
Treat alarms and warnings as evidence: The machine is presenting evidence of an abnormal condition. Investigate it.
Record accurate findings: “Hose leaking” is useless. “Steering pump discharge hose leaking at the crimp, requires 1.5m 1-inch 4-wire hose” is professional.
Communicate defects clearly: Ensure supervisors and planners understand the severity of what you have found.
Think about the next failure before it happens: Anticipate how a loose clamp will eventually cut through a wire.

6. The Heavy Equipment Preventive Maintenance Process

A structured, repeatable process guarantees consistency.

Step 1: Review service history and previous defects. Know what was repaired last time to verify it is still holding up.
Step 2: Speak with the operator. They spend 12 hours a day in the cab. They know what sounds different.
Step 3: Confirm the machine’s current condition. Check active fault codes before starting the service.

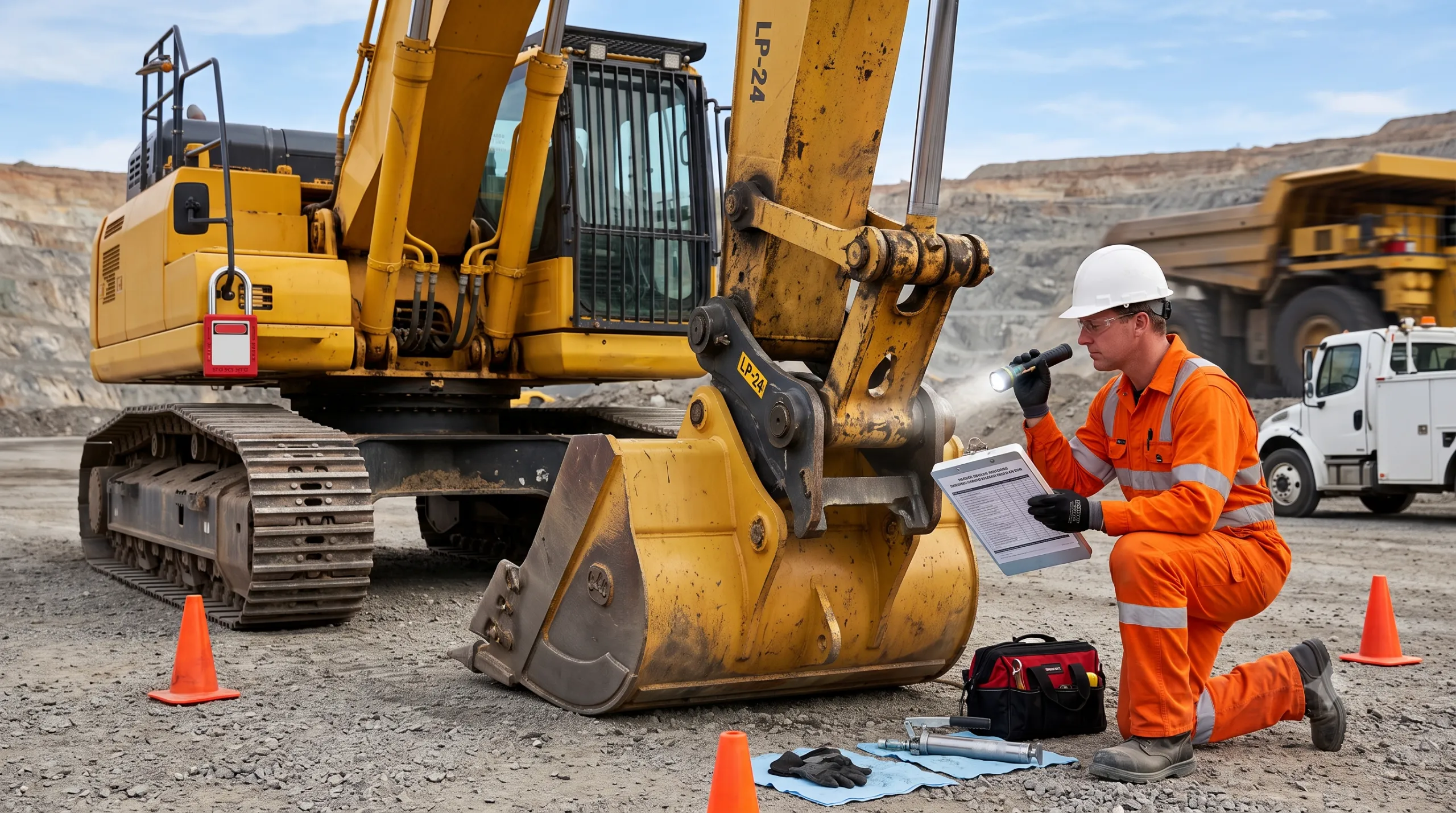

Step 4: Conduct a full walk-around inspection. Look at the machine as a whole before diving into the engine bay.
Step 5: Inspect before cleaning away evidence. Washing a machine removes the evidence of minor oil leaks and fretting dust. Inspect first.
Step 6: Perform scheduled servicing correctly. Execute filter and fluid changes with absolute contamination control.
Step 7: Inspect deeply. Check fluids, magnetic plugs, breathers, wiring, hoses, structures, tyres, undercarriage, pins, bushes, safety devices, and machine-protection systems.
Step 8: Record defects with detail. Use measurements, photographs, and clear descriptions.
Step 9: Prioritize defects. Rank them by safety, operational risk, and failure consequence.
Step 10: Perform post-service checks. Verify machine operation, ensure no new leaks exist, and confirm fluid levels at operating temperature.

7. Early Warning Signs Technicians Must Never Ignore

Preventive maintenance is the discipline of acting on early evidence before a manageable defect becomes an expensive breakdown.

Never ignore these practical warning signs:

Minor hydraulic or fuel leaks
Repeated low-level alarms or logged events
Loose electrical connectors
Harness rubbing and hose abrasion
Abnormal bearing heat
Changing oil colour or a burnt smell
Metallic debris on drain plugs
Increasing air or fuel filter restriction
Unusual mechanical noise or slow hydraulic response
Structural cracking and loose mounting hardware
Worn pins and bushes
Blocked grease lines or dry articulation points
Uneven tyre or undercarriage wear
Rising operating temperatures under load

Small changes are the earliest evidence of a developing failure.

8. Common Preventive Maintenance Failures

Even experienced workshops fall victim to these poor practices:

Pencil-whipping checklists: Ticking boxes without actually looking at the component.
Replacing filters without inspecting them: Throwing away a filter without inspecting for internal metal debris.
Cleaning away evidence before inspection: Power-washing away oil trails that lead to the source of a leak.
Ignoring minor leaks: Assuming “it’s just a sweat” until the machine runs dry.
Failing to sample fluids correctly: Taking SOS samples from the drain pan rather than a live port.
Using dirty oil containers or tools: Contaminating clean systems.
Reporting defects vaguely: Writing “broken light” instead of specifying which light.
Clearing alarms without investigation: Erasing the machine’s cry for help.
Bypassing warning or protection systems: The most dangerous failure in maintenance.
Assuming another person will follow up: Leaving a defect unwritten because “someone else will catch it.”
Treating every machine identically: Failing to account for different duty cycles.
Failing to verify repairs or adjustments: Releasing a machine without testing it.

9. Chief Engineer’s Case Files

CASE FILE TITLE: The Greasing Alarm That Was Bypassed

CASE DETAILS: The Chief Engineer was working on a Caterpillar 6030 face shovel. The machine developed a fault in its greasing system.

When the greasing fault occurred, the machine restricted or locked the bucket functions.

Instead of diagnosing and correcting the greasing-system fault, the supervisor instructed an electrician to bridge the system. The electrician performed the bypass, and the machine returned to production.

However, bypassing the electrical system did not restore physical grease flow to the bucket linkage. The machine continued operating while the massive bucket pins were receiving insufficient lubrication. Eventually, due to extreme friction and load, the bucket pins seized entirely.

Removing the seized pins became a major mechanical repair. The work required substantial labour, extended machine downtime, and the expensive replacement of bucket pins and related structural components.

Had the original greasing alarm been diagnosed and repaired correctly by a Diagnostic Leader, the pin seizure and major repair could likely have been prevented.

10. What This Case Teaches

This case illustrates the catastrophic cost of ignoring early evidence.

An alarm is evidence, not an inconvenience. It is a deliberate engineering design meant to protect the machine.
Bypassing an interlock does not correct the physical fault. You cannot fool physics. Bridging a sensor does not pump grease.
The machine can continue producing while mechanical damage develops. A running machine is not necessarily a healthy machine.
Lubrication failure may progress silently until components seize.
Production pressure can encourage poor maintenance decisions. Supervisors and technicians must push back against unsafe or destructive instructions.
A short-term production gain can create far greater downtime later. Hours gained today cost weeks of downtime tomorrow.
Protective logic exists to prevent damage or unsafe operation.
The technician must restore the system—not simply remove the restriction.
Preventive maintenance requires acting on early warning signs.

Never bypass the warning and leave the failure behind.

11. Preventive Maintenance and Reliability

High-quality preventive maintenance directly impacts the site’s most critical metrics. By catching faults early, technicians improve:

Mean Time Between Failures (MTBF): Machines run longer without breaking down.
Mean Time to Repair (MTTR): Planned repairs are usually faster and less disruptive than responding to a burst hose, containing a major oil spill and repairing any secondary damage.
Machine availability: The percentage of time the machine is ready to work increases.
Component life: Clean oil and properly adjusted systems last longer.
Planned versus unplanned work: Moving from chaos to controlled maintenance scheduling.
Maintenance backlog: Catching small defects prevents them from snowballing into massive jobs.
Production reliability: The mining or construction operation can actually meet its targets.
Safety performance: Reliable machines are safer to operate.
Total cost of ownership: Reducing catastrophic failures saves millions.
Operator confidence: Operators take better care of machines that are well-maintained.

12. What This Means for Technicians

The transition from a parts changer to a Diagnostic Leader requires a shift in how you behave during every PM service.

You must treat the machine as if you personally own it. You must look beyond the service sheet and interrogate the asset. Report what you find honestly, and absolutely refuse to bypass active faults or machine-protection logic to appease production pressures. Production pressure does not cancel physical consequences; a seized pin will stop the mine regardless of how badly the dirt needed to be moved.

Escalate serious defects immediately, and follow your reported defects to closure. By doing this, you protect future shifts from preventable failures and build professional trust through accurate, high-integrity maintenance work.

Never leave a PM knowing only what you changed. Leave knowing the condition of the machine.

13. Heavy Equipment Preventive Maintenance Checklist

BEFORE THE SERVICE

[ ] Review machine history
[ ] Confirm exact service interval
[ ] Check open defects and backlog
[ ] Speak with the operator
[ ] Prepare clean tools, filters, and fluids
[ ] Apply required safety isolation (LOTOTO)

DURING THE SERVICE

[ ] Inspect before cleaning away evidence
[ ] Check fluids and replace filters
[ ] Inspect used filters in accordance with OEM and site procedures. Where filter cutting is permitted, use a purpose-built filter cutter, suitable PPE and contamination-controlled handling practices.
[ ] Examine magnetic drain plugs for metallic debris
[ ] Inspect wiring harnesses, P-clips, and connectors
[ ] Inspect hydraulic hoses, hardlines, and clamps
[ ] Check pins, bushes, and verify actual grease delivery
[ ] Inspect structures and weld areas for cracking
[ ] Check safety systems, e-stops, and alarms
[ ] Record critical measurements (e.g., brake wear, track sag)
[ ] Photograph significant defects for the planner

AFTER THE SERVICE

[ ] Confirm all fluid levels at operating temperature
[ ] Check for leaks under pressure
[ ] Verify that repaired faults are no longer active and that no unresolved alarms remain. Record diagnostic history before clearing codes where required by site procedure.
[ ] Perform operational test of all functions
[ ] Record all findings accurately on the work order
[ ] Raise follow-up work for discovered defects
[ ] Confirm machine status with operations

14. Key Takeaways

Preventive maintenance is a disciplined inspection process, not just a filter change.
Technician mindset—curiosity, ownership, and honesty—determines the quality of a PM.
A completed service sheet does not guarantee the machine is healthy; only rigorous inspection does.
Never bypass safety or machine-protection systems to maintain production.
Small defects (leaks, heat, noise) are the earliest evidence of major failures.
A Diagnostic Leader prevents failures by acting on evidence before breakdowns occur.

15. Frequently Asked Questions

Q1: What is heavy equipment preventive maintenance? A: It is a scheduled, disciplined process of servicing and inspecting equipment to maintain its health and identify early signs of wear before they cause a breakdown.

Q2: What is the difference between servicing and preventive maintenance? A: Servicing is the physical act of changing fluids and parts. Preventive maintenance includes servicing, but relies heavily on deep inspection and condition assessment.

Q3: Why should filters be inspected after removal? A: Cutting open a used oil or hydraulic filter allows a technician to look for metallic debris. This is often the first and only early warning sign that an internal component (like a pump or bearing) is beginning to fail.

Q4: Should technicians clear alarms during a PM? A: No, unless they have investigated the root cause of the alarm, documented it, and repaired the underlying fault.

Q5: What should happen when a lubrication alarm appears? A: The machine should be stopped safely, and a technician must diagnose the physical reason for the lack of lubrication (e.g., blocked line, empty reservoir, failed pump) and repair it.

Q6: Why is contamination control important? A: Modern hydraulic and fuel systems operate at extreme pressures with microscopic tolerances. Introducing dirt during a PM can destroy a system within hours.

Q7: How should defects be reported? A: Clearly, accurately, and with actionable detail. Include what has failed, its exact location, and the parts required to fix it.

Q8: What is pencil-whipping? A: The dangerous and unethical practice of ticking off checklist items without actually performing the physical inspection or task.

Q9: How does operator feedback help maintenance? A: Operators know how the machine normally sounds and feels. They can point technicians toward intermittent faults, strange noises, or sluggish performance that a static PM might miss.

Q10: What should a technician do when production wants a warning bypassed? A: Stop the task, explain the technical and safety consequences, and escalate the request through the site’s maintenance and safety authority in accordance with the approved procedure. Do not bypass the system without an authorized engineering-controlled process.

Q11: How does PM improve machine availability? A: By catching faults while they are small and repairable in a scheduled window, preventing massive, unplanned breakdowns that take machines offline for weeks.

Q12: Can a minor leak wait until the next service? A: It depends on the severity, but it must be recorded. A minor weep might wait, but a dripping high-pressure hose is a blowout waiting to happen and must be repaired.

Q13: What measurements should be recorded during PM? A: Brake wear indicators, track sag, fluid levels, operating temperatures, and any specific OEM-mandated tolerance checks.

Q14: How should developing faults be prioritized? A: Safety risks first, followed by operational risks (will this stop the machine?), and finally failure consequence (will this cause secondary damage?).

Q15: What makes a good preventive-maintenance technician? A: Ownership, curiosity, integrity, and the understanding that their primary job is to hunt for evidence of failure, not just change oil.

16. Conclusion

The standard of a workshop is dictated by the standard of its preventive maintenance.

Heavy equipment preventive maintenance is not a timetable, a checklist, or a collection of replacement parts. It is a professional mindset. Machines rarely fail without warning; they give off heat, noise, leaks, and alarms. The technician’s duty is to recognize that evidence, investigate it, report it, and ensure the underlying defect is corrected.

Becoming a Diagnostic Leader means recognizing that the true measure of a PM is not how quickly the service sheet was completed, but how effectively you protected the machine’s reliability and communicated its condition.

17. References

Modern Trade Skills Handbook Version 1.0 – Institutional Framework & Diagnostic Leader Method™.
OEM Operation and Maintenance Manuals (OMM) – Standard inspection and servicing guidelines.
ISO 4406 – Hydraulic fluid power — Fluids — Method for coding the level of contamination by solid particles.
Recognized principles of Reliability-Centered Maintenance (RCM) and Condition-Based Maintenance (CBM).
